Household Refrigerating Appliances
System Objective
System designed to test many factors :
- Electricity Performance
- Body Isolation
- Pull down Test
- Temp Rise Test
- Freezing/Cooling Quality
- Cooling Capacity Test
- Freezing Capacity Test
Testing Chamber Components
- Air Handling Unit (AHU) :
for adjusting chamber temperature and humidity according to test settings by IEC Standard. - Power Supply for stable sample power while testing.
- 18 Sensor used in chamber as following
- 2 sensors for chamber humidity and Temperature.
- 16 Sensors available for testing packages.
- Data acquisition board for data transmission and control between system components.
- Power Analyzer to read and display actual power data feeding sample while testing.
Features
- Temperature control range (10 to 50)
- Temperature Distribution inside the room: Less than 1 ° C /Meter.
- Temperature control stability: less than +/- 0.5 ° C.
- Relative humidity Control Range: (35: 80)
- Relative humidity Control Stability: +/-2%.
- Chamber manufactured from composite panel (sandwich panel)
- Chamber is easily dismounted and removable to be installed in other location.
- No of Samples: (1,2,4,8,10).

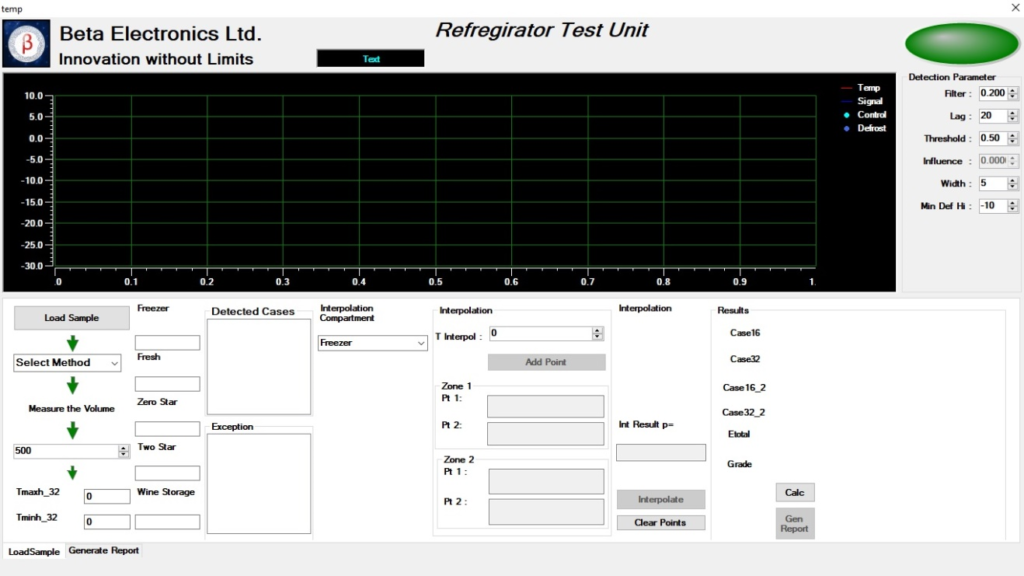

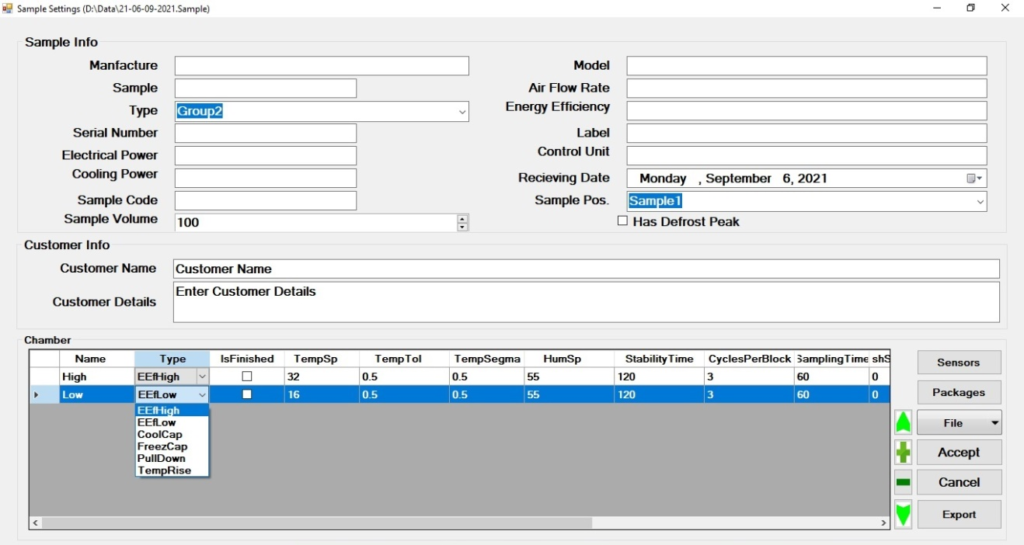

Software
